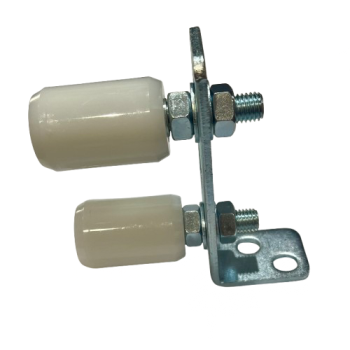

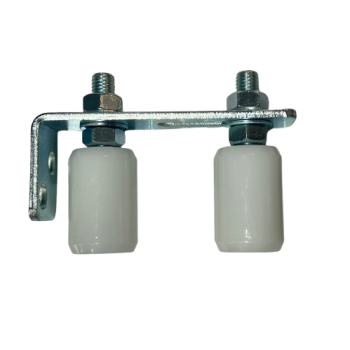

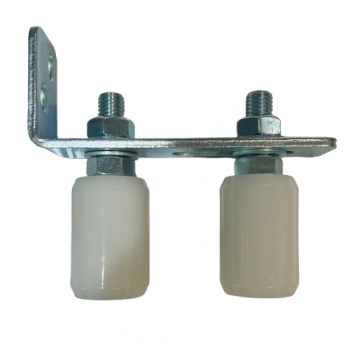

CGH8S-3C Overhead Two Wheel Guide Bracket
$28.39
Item#CGH8S-3C Overhead Two Wheel Guide Bracket
This Two Wheel Guide Bracket is perfectly suitable for Overhead Sliding Gate Systems or Tracks with Max. Width of 2″.
Measurements:
Nylon Wheels : Height 1.73″, Dia. 1.5″
Bolt: M12
Bracket: Length 5-7/8″, Wheel Guide Width: 2-3/8″
Bracket: Anchor Side Height 2-3/8″
Anchor Holes: 2 Wall Anchor Holes Dia. 3/4″ ; Wheel Slide Length 2-1/2″
Guide Wheels Measurements: 1 Fixed 3/4″ Guide Wheel and 1 Adjustable Guide Wheel Slot (2.5″)
Bolt Size: 1/2″ Bolts with Washers (4 each) included
Approx Product Weight 2Lbs – this product ships at a higher weight Approx 2.5 lbs.
These guide wheels can be affixed to a single post or wall to be used as an extra gate guide or support.
At US Metal Designs, we have the needed components for your next gate project!
200 in stock
Description
Item#CGH8S-3C Overhead Two Wheel Guide Bracket
This Two Wheel Guide Bracket is perfectly suitable for Overhead Sliding Gate Systems or Tracks with Max. Width of 2″.
- Two Nylon Guide Wheels
- Strong and safe Gate Wheel Guide
- Works with our Model of Overhead Gate Track Item#OGT-1D
- Adjustable Wheel Guide Positions
- Adjusts Up to 2″ between the appointed Nylon Rollers
- Zinc Coated Steel and Nylon Wheels
Measurements:
Nylon Wheels : Height 1.73″ , Dia. 1.5″
Bolt: M12
Bracket: Length 5-7/8″, Wheel Guide Width: 2-3/8″
Bracket: Anchor Side Height 2-3/8″
Anchor Holes: 2 Wall Anchor Holes Dia. 3/4″ ; Wheel Slide Length 2-1/2″
Guide Wheels Measurements: 1 Fixed 3/4″ Guide Wheel and 1 Adjustable Guide Wheel Slot (2.5″)
Bolt Size: 1/2″ Bolts with Washers (4 each) included
Approx Product Weight 2Lbs – this product ships at a higher weight Approx 3 lbs.
These guide wheels can be affixed to a single post or wall to be used as an extra gate guide or support.
Additional information
| Weight | 3.1 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
